Exalco SPACE
- Type: Sliding
Description
Introducing EXALCO SPACE, an innovative range of minimalist sliding frames designed for the ultimate living experience. The Exalco Space range features ultra-thin or invisible aluminium profiles, offering unobstructed views and ultra-modern aesthetics. In addition, the sophisticated hidden rail driver system is virtually invisible. Excellent heat transfer and sound insulation indices ensure energy-efficient and comfortable living of the highest standard.
The Exalco Space system is flexible and can be manufactured in all sliding typologies and with unlimited moving sheets, making it ideal for large area glazing. With a maximum sheet weight of 500 kg, the frames can support heavy panels, offering design flexibility.
In addition, Exalco Space minimal frames include a special drainage system with a sink, either visible or hidden, ensuring efficient water management and preventing any damage from overflow. They are the only minimal sliding systems that accept easy and quick replacement of the glazing in case of breakage or wear of the components, without removing the frame!
Experience the ultimate living environment with the highest level of aesthetics and functionality
Typology - Superimposed | Recessed| 1,2,3,3,4,6 glass panels in a double or triple rail driver.
Design meets usability, with the maximum possible use of your space with style and timeless elegance.
Advantages
Technical Specifications
Advantages
Easy and quick replacement of the glassing
Flexibility in design
Unlimited moving glass panels
Advanced hidden drainage system
The vertical profiles are the only visible aluminum profiles in the system
The hidden rail driver, visible only as two lines, enables the continuity of the floor from the inside to the outside
The height of the frsme at 30mm makes it an ideal solution for replacing old window frames. The visible aluminium profile of the sash is 21 mm.
Technical Specifications
4 types of EXALCO SPACE
- INSIDE-OUT
The vertical profiles are the only visible aluminum profiles in the system. - INSIDE OUT WITHOUT WATER DRAINAGE OUTSIDE

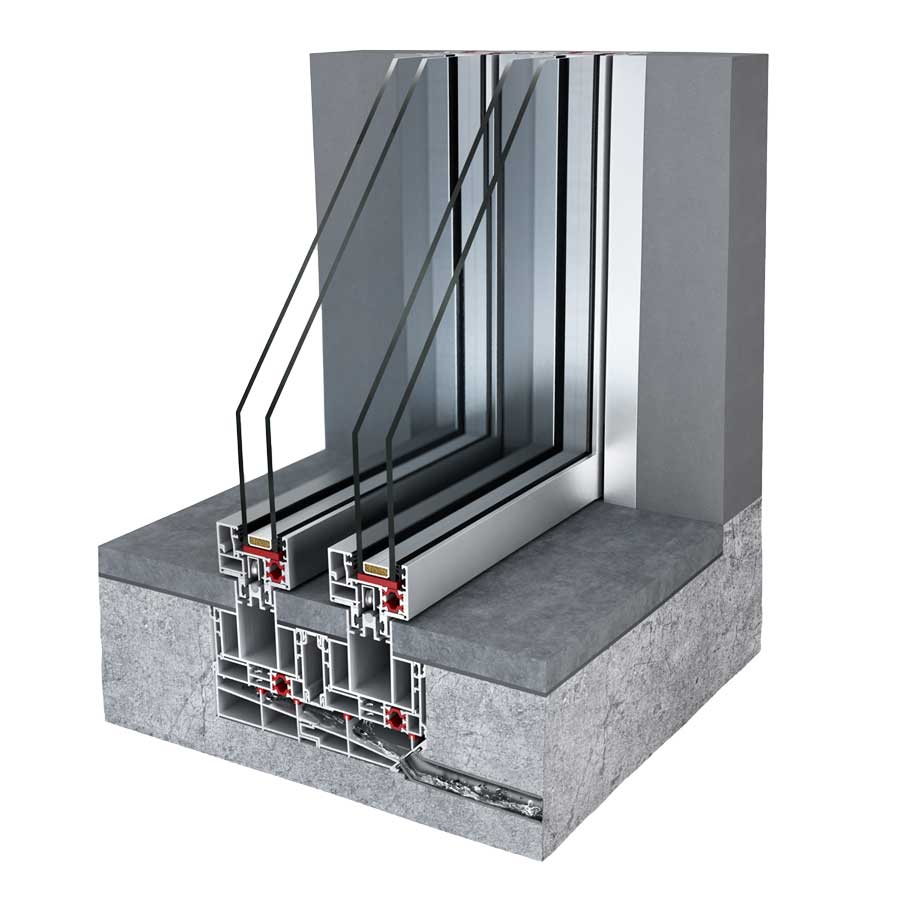

- SPACE INVISIBLE
The hidden rail driver, visible only as two lines, enables the continuity of the floor from the inside out. - SPACE REPLACE FOR LOWER WATERPROOFING REQUIREMENTS
The height of the frsme at 30mm makes it an ideal solution for replacing old window frames. The visible aluminium profile of the sash is 21 mm.
- Casing height: 33mm
- Max. glass panel height: 4,500 m
- Max. sheet width: 3,000 m
- Glass thickness: 24 - 45 mm
- Design - sliding/concealed sash/overlap 25mm
- Thermal insulation chambers - Thermal break 24mm
- Typology - Superimposed | Recessed| 1,2,3,3,4,6 glass panels in a double or triple rail driver.
Exalco SPACE PDF
Advantages
Technical Specifications
Advantages
Easy and quick replacement of the glassing
Flexibility in design
Unlimited moving glass panels
Advanced hidden drainage system
The vertical profiles are the only visible aluminum profiles in the system
The hidden rail driver, visible only as two lines, enables the continuity of the floor from the inside to the outside
The height of the frsme at 30mm makes it an ideal solution for replacing old window frames. The visible aluminium profile of the sash is 21 mm.
Technical Specifications
4 types of EXALCO SPACE
- INSIDE-OUT
The vertical profiles are the only visible aluminum profiles in the system. - INSIDE OUT WITHOUT WATER DRAINAGE OUTSIDE
- SPACE INVISIBLE
The hidden rail driver, visible only as two lines, enables the continuity of the floor from the inside out. - SPACE REPLACE FOR LOWER WATERPROOFING REQUIREMENTS
The height of the frsme at 30mm makes it an ideal solution for replacing old window frames. The visible aluminium profile of the sash is 21 mm.
- Casing height: 33mm
- Max. glass panel height: 4,500 m
- Max. sheet width: 3,000 m
- Glass thickness: 24 - 45 mm
- Design - sliding/concealed sash/overlap 25mm
- Thermal insulation chambers - Thermal break 24mm
- Typology - Superimposed | Recessed| 1,2,3,3,4,6 glass panels in a double or triple rail driver.
At Union Profile we have a wide range of PVC window colours. With a huge colour palette, you're sure to find one that suits your personal style and the style of your space. Thanks to new painting technologies, the aesthetic result is guaranteed. Refined finish that offers real value to your windows and makes your home unique! Anti-corrosion protection ensures that the colour will remain unchanged for many years, even in areas with extreme conditions.
PRE-INSTALLATION MAGNETIC ALARM CONTACTS PRE-INSTALLATION
- Advanced magnetic contact for alarm systems - can be pre-installed during the construction of your frames.
- The contacts are fitted internally as an accessory and leave the aesthetics of the frames unaffected.
- Say goodbye to drilling and messy facilities.
- Enjoy enhanced security without any extra hassle.
- By pre-installing contacts, your new windows are equipped with advanced security features right from the start.
Types of glazing combined with Exalco SPACE
Types of glazing combined with Exalco SPACE
The thickness of the glazing should not be less than 4 mm because in these cases it is vulnerable to bending. The longer the distance between the double glazing, the softer the connection between the two panes of glass through the air between them becomes, thus optimising the sound insulation. Asymmetrical glass thicknesses are better than symmetrical ones (e.g. 8-12-4 instead of 6-12-6) because this avoids simultaneous resonance of the glass.
Handles combined with the Exalco SPACE
Handles combined with the Exalco SPACE
Union Profile offers a wide range of handles for balcony doors and windows.
The frames we manufacture can be used in any climatic zone of Greece, as they cover the thermal insulation limits set by the K.EN.A.K.
